Within diamond core‑drilling operations, diamond drill bits are fitted onto the tip of hollow drill rods. Their primary function is to carve out intact cylindrical rock core samples, which are later retrieved for surface‑based geological analysis. Mounted right above the drill bit or on the upper section of the outer core tube, the diamond reaming shell serves a critical auxiliary purpose. It trims boreholes to maintain stable, precise hole diameters and greatly lowers the risk of core tube jamming deep underground.

Throughout the drilling cycle, the reaming shell also works as a stabilizing component for both the diamond bit and core barrel assembly. It effectively minimizes drill‑string vibration and keeps borehole deviation under control. Helical‑flute reaming shells feature well‑optimized water‑flow channels. Built with highly wear‑resistant matrix material, these tools can deliver extended working lifespans in tough field environments.

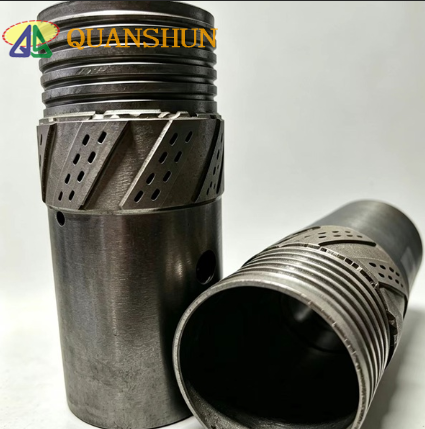

High‑grade synthetic or natural diamonds are embedded within the spiral outer segments of reaming shells. This structural design enables reliable performance across diverse ground conditions, ranging from fractured, abrasive rock layers to dense, non‑abrasive consolidated formations.

The outer dimension of a reaming shell is slightly bigger than that of the paired core drill bit. Two mainstream types are widely available on the market: tungsten‑carbide reaming shells and diamond‑impregnated reaming shells, selected according to actual rock‑drilling requirements.
